Best Linux alternatives to Dia

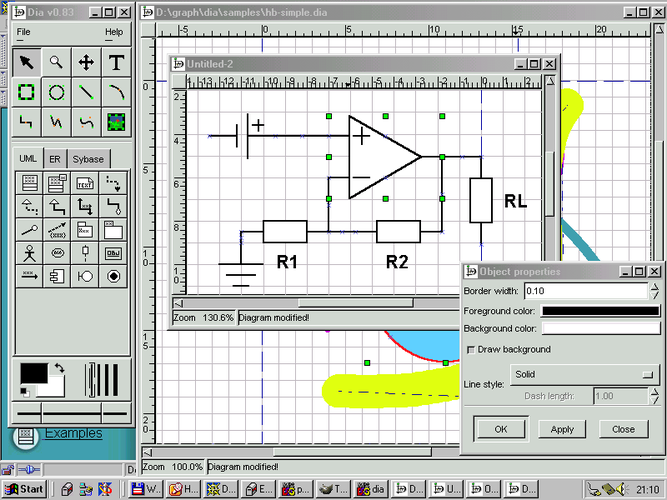

What is Dia?

Dia serves software developers, network administrators, and project managers who need to visualize processes and system architectures. It handles flowcharts, UML class diagrams, and network topologies without requiring expensive proprietary licenses. Users appreciate its lightweight nature for quick technical sketches.

The software is completely free and open source, originally developed by Alexander Larsson. It operates under open licensing models that allow unrestricted use, modification, and distribution. There are no subscription fees or feature locks, making it accessible for both individual professionals and large organizations.

People seek Linux alternatives because Dia, while available on Windows, has a dated interface and limited modern features. Linux users often prefer native applications that integrate better with their desktop environments. Switching ensures compatibility with local file systems and avoids potential Wine compatibility issues for a smoother workflow.

What a replacement for Dia must do

• Create flowcharts and process maps
• Generate UML class and sequence diagrams
• Draw network topology diagrams
• Support for standard shapes and connectors
• Export to common image and vector formats
• Simple, non-distracting user interface

Can you run Dia on Linux?

Dia is originally a Linux application, so it runs natively on most distributions without any compatibility layers. You can install it directly from your package manager. There is no need for Wine or Proton. If you are coming from Windows, the Linux version is the primary and most stable build, offering the best performance and integration with your desktop environment.

Which alternative should you choose?

If you want the closest match to the original Dia experience, stick with Dia itself, as it is already listed and native to Linux. For users who need diagramming as part of a broader office suite, OpenOffice.org Draw offers more general-purpose drawing tools but may feel less specialized for technical diagrams. Kivio is a good option if you are already using the Calligra Suite, as it integrates well with other Calligra applications, though it is less common than the other two.

Moving your Dia files and habits

Dia files use the .dia extension, which is specific to the application. If you switch to OpenOffice.org Draw or Kivio, you will likely need to export your existing diagrams as SVG, PDF, or PNG images first. These formats can then be imported into the new software. Direct file format compatibility between Dia and these alternatives is limited, so planning for image-based migration is the safest approach to preserve your existing work.
